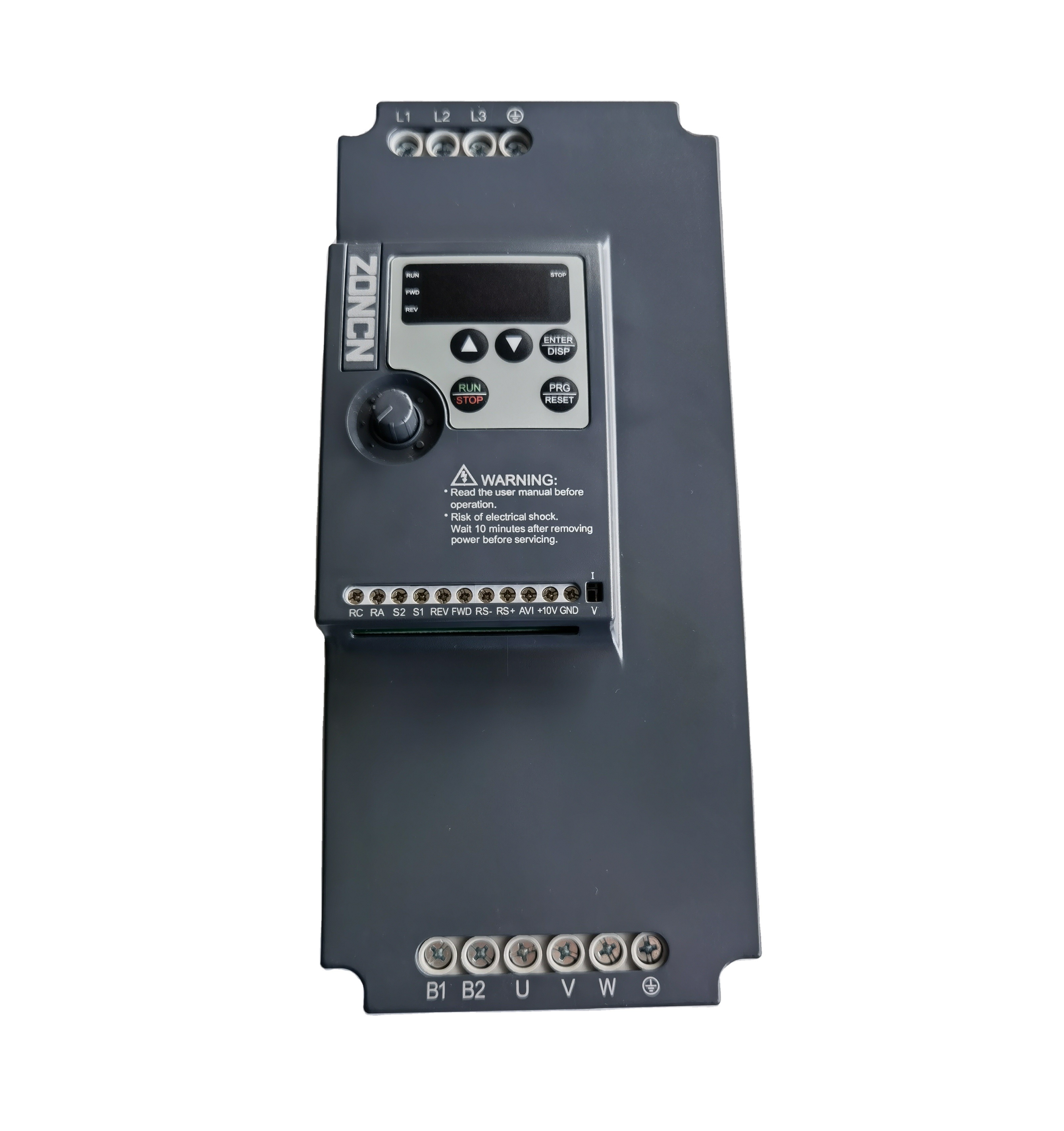

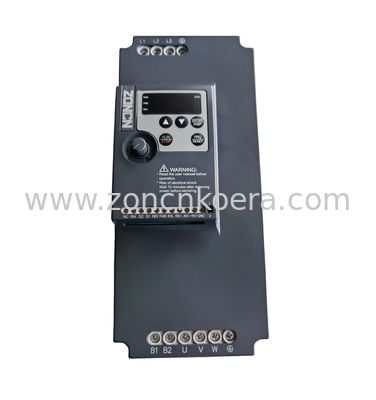

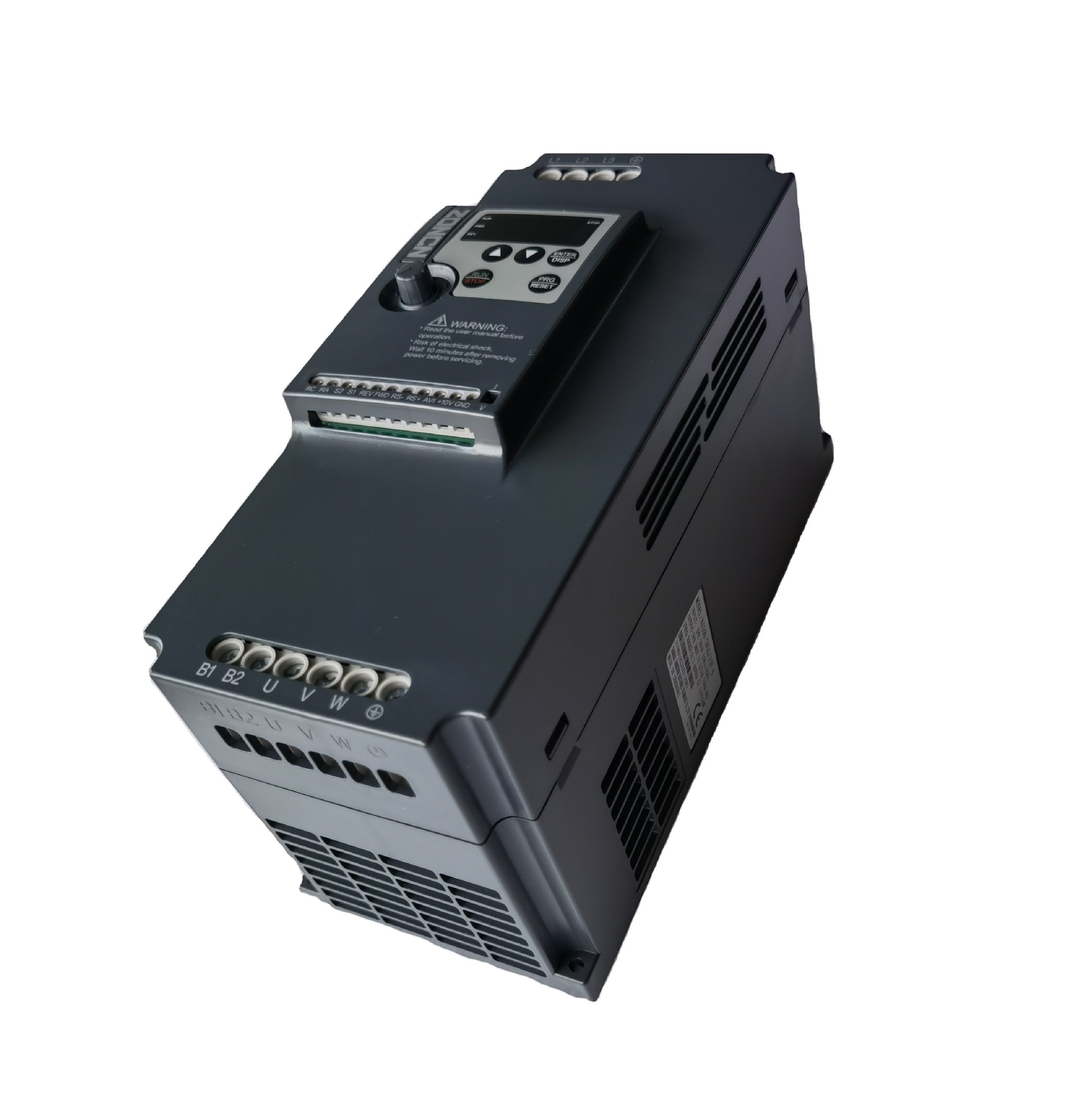

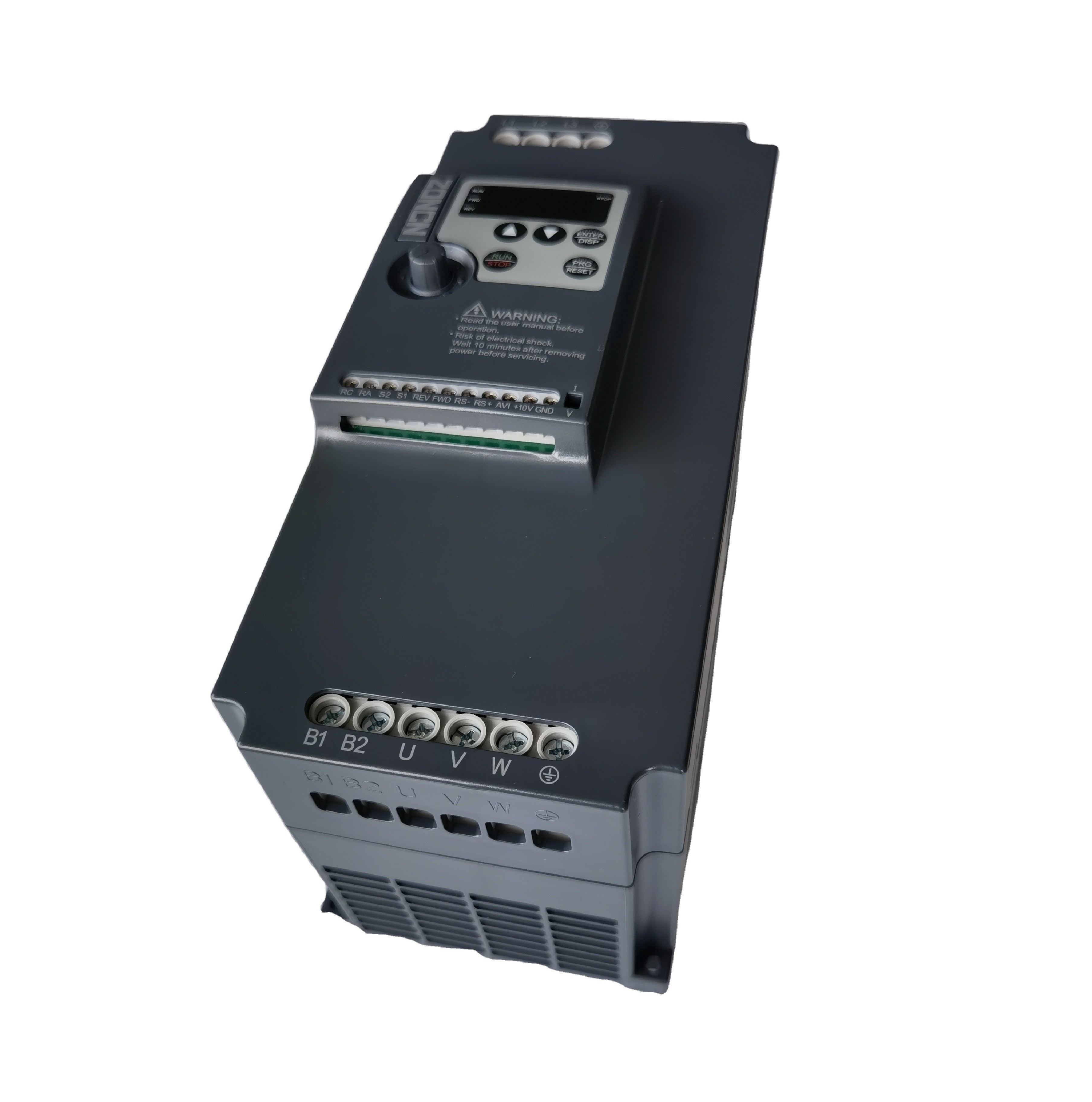

380v VFD Inverter 7.5kw Variable Frequency Drives 10hp From ZONCN

Βασικές πληροφορίες

Place of Origin:	China
Μάρκα:	ZONCN
Πιστοποίηση:	KC; CE
Model Number:	NZ100-7R5G-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Western Union, Paypal
Supply Ability:	100,000 pcs/month

Καλύτερη τιμή Επικοινωνήστε

Product:	VFD inverter	Brand:	ZONCN
Series:	NZ100	Input:	380v 3ph
Power:	7.5kw/10HP	Frequency:	50hz/60hz
Communication:	RS485 (MODBUS)	control mode:	V/F control
warranty:	18 months	OEM:	Yes

380v VFD Inverter 7.5kw Variable Frequency Drives 10hp From ZONCN

ZONCN NZ100 VFD inverter Features

Affordable & Compact – The VFD inverter is cost-effective and space-saving, making it ideal for small installations.
V/F Control – The VFD inverter uses V/F control to adjust motor speed efficiently, reducing energy consumption.
Built-in PID Control – The VFD inverter features integrated PID for precise process regulation.
External Terminals – Wiring is easy since the VFD inverter has externally accessible terminals.
Detachable Keypad – The VFD inverter supports a remote control keyboard for flexible operation.
Potentiometer Knob – Speed adjustment is simple with the VFD inverter’s built-in potentiometer.
Analog Inputs – The VFD inverter includes analog input terminals for flexible signal control.
RS485 Communication – The VFD inverter supports MODBUS RTU/ASCII for industrial automation.
DIN Rail Mounting – For models up to 5.5KW, the VFD inverter can be installed on 35mm rails.
OEM Support – The VFD inverter allows customization for specialized applications.

With its compact design, energy-saving features, and user-friendly interface, the VFD inverter is a reliable choice for motor control. The VFD inverter ensures smooth operation while offering flexible installation and communication options. Whether for industrial or commercial use, the VFD inverter delivers high performance at a competitive price.

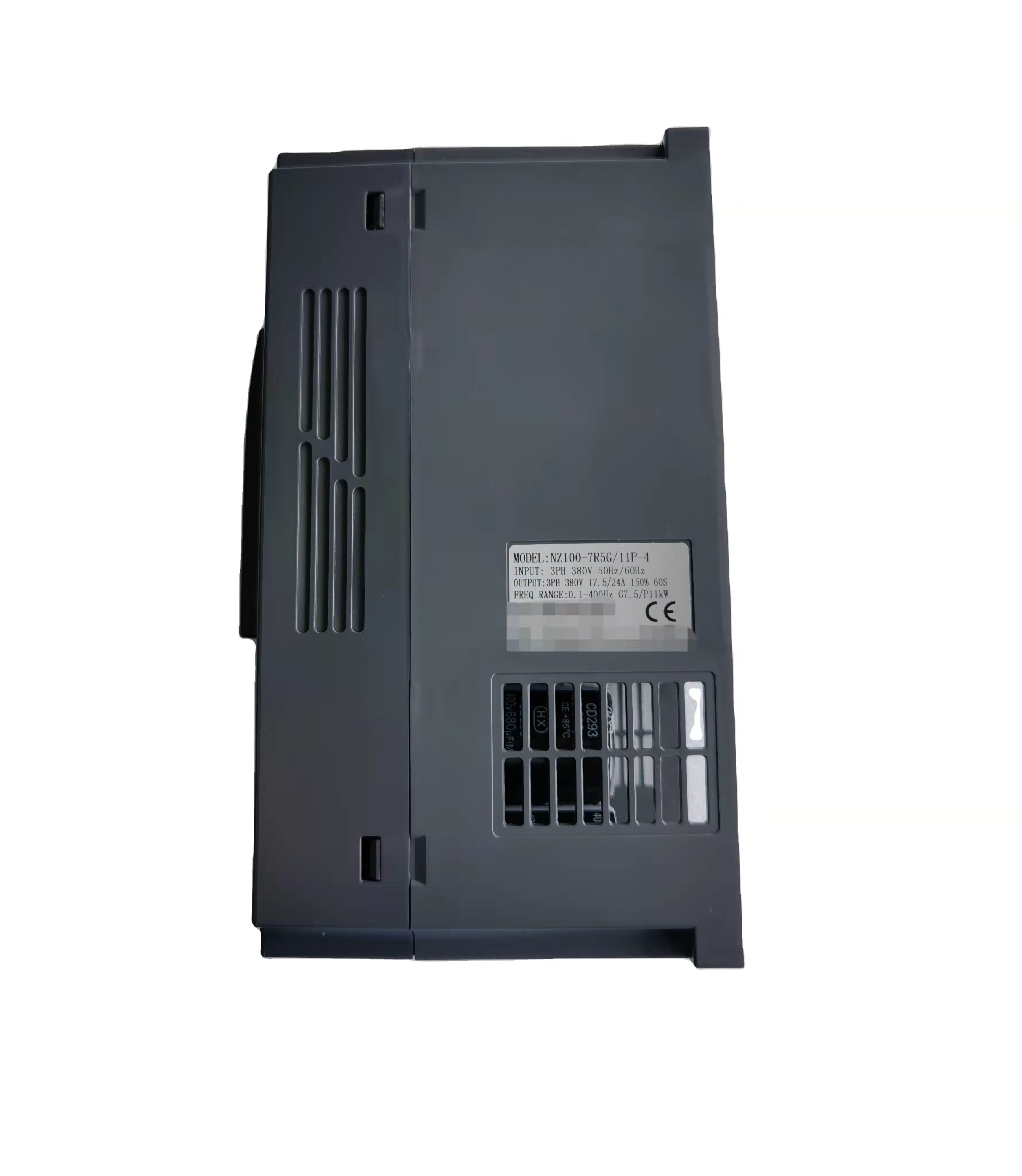

VFD inverter's Nameplate Description

380v VFD Inverter 7.5kw Variable Frequency Drives 10hp From ZONCN 0

VFD inverter's Specification

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.
